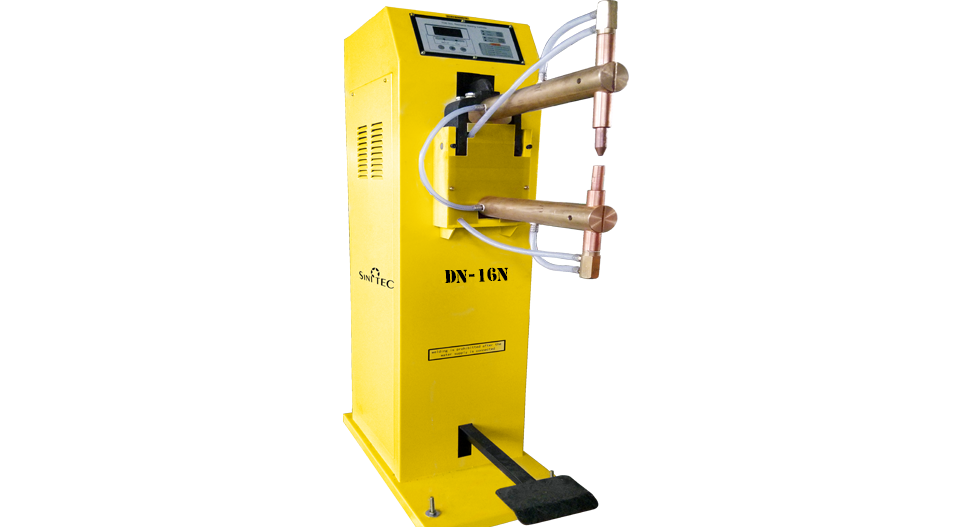

DN-16N New Design Pedal Spot Welder

Pedal-level type spring-pressing structure makes the machine easy to operate and convenient to maintain;
Thyristor non一eontaet switch circuit ensure the machine shut off quickly and more reliable;
Adopting microcomputer control, the current regulation accuracy is high, and the welding repeatability is good;
Widely used for welding of low carbon steel;wire stainless steel plate etc;
Main transformer water Cooling design, good heat dissipation, low power consumption

Description

Model	DN-10N	DN-16N	DN-25N	DN-35N
Pneumatic Controller	YES	YES	YES	YES
Power Voltage(V)	380	380	380	380
Frequency(HZ)	50	50	50	50
Rated Input Capacity(KVA)	10	16	25	35
Rated Primary Current(A)	26.3	42.1	63	92
Rated Duty Cycle(%)	20	20	20	20
No-load Voltage(V)	1.65-2.4	1.98-3.01	2.25-3.58	3.1-5.2
Upper Electrode Working Stroke(mm)	10-50	10-50	10-50	10-50
Max.Electrode Force(N)	2000	2000	2000	2000
Welding Thickness(mm)	1.5+1.5	2+2	2.5+2.5	3+3
Stainless Steel(mm)	0.6+0.6	0.8+0.8	1+1	1.2+1.2
Flow Of Cooling Water（L/min）	6	6	6	6
Weight(KG)	72	82	100	105
Dimensions(mm)	7603401300	7603401300	8003401300	8003401300
