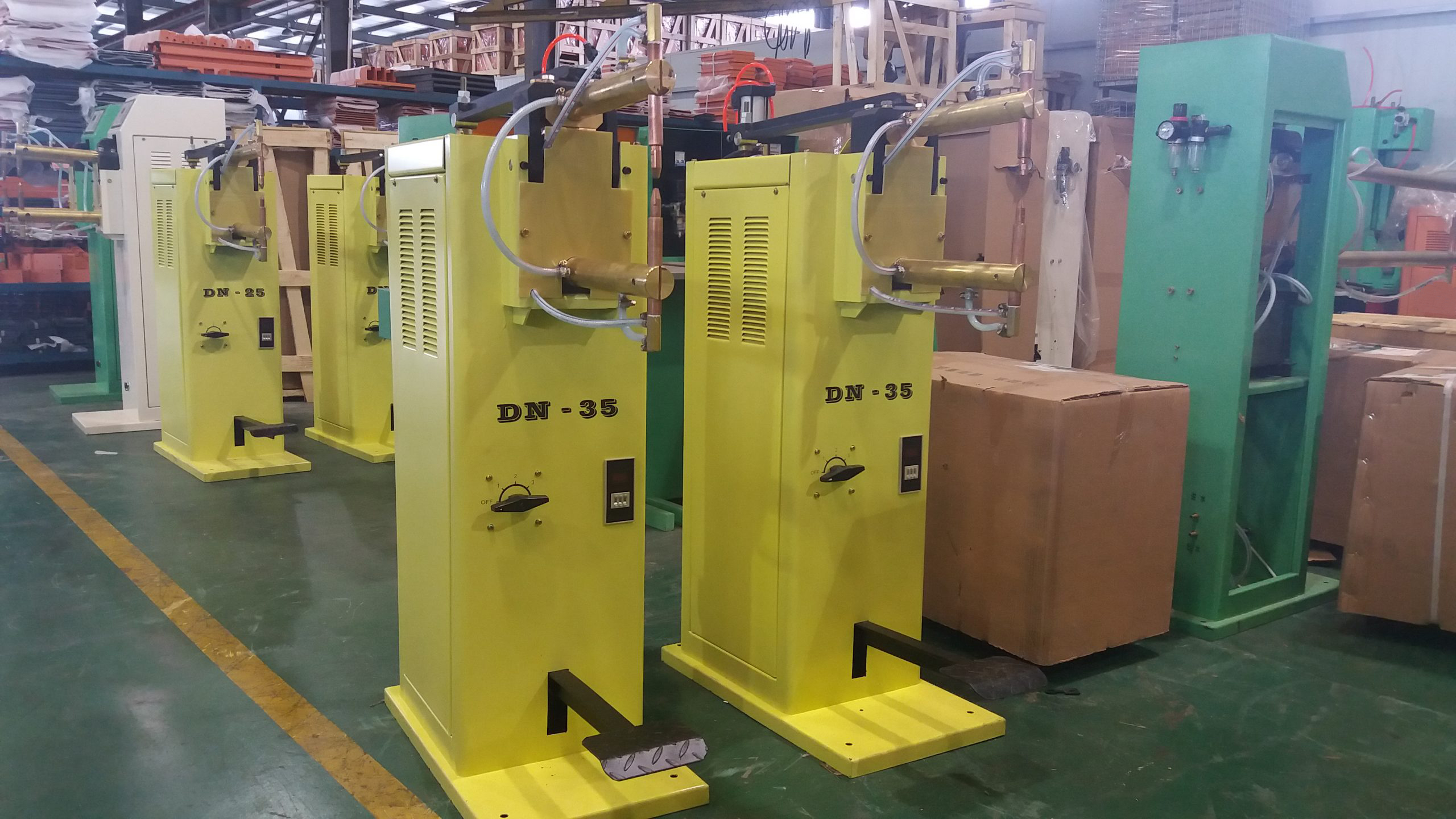

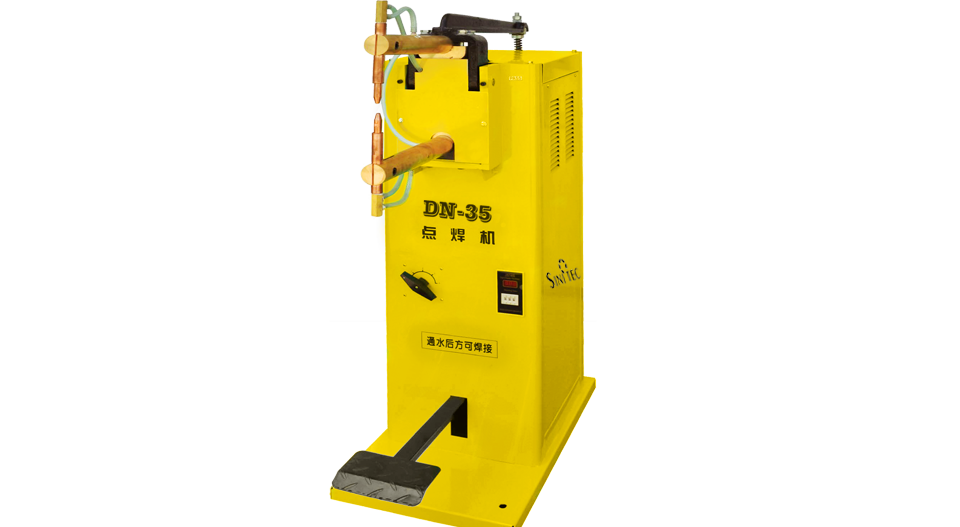

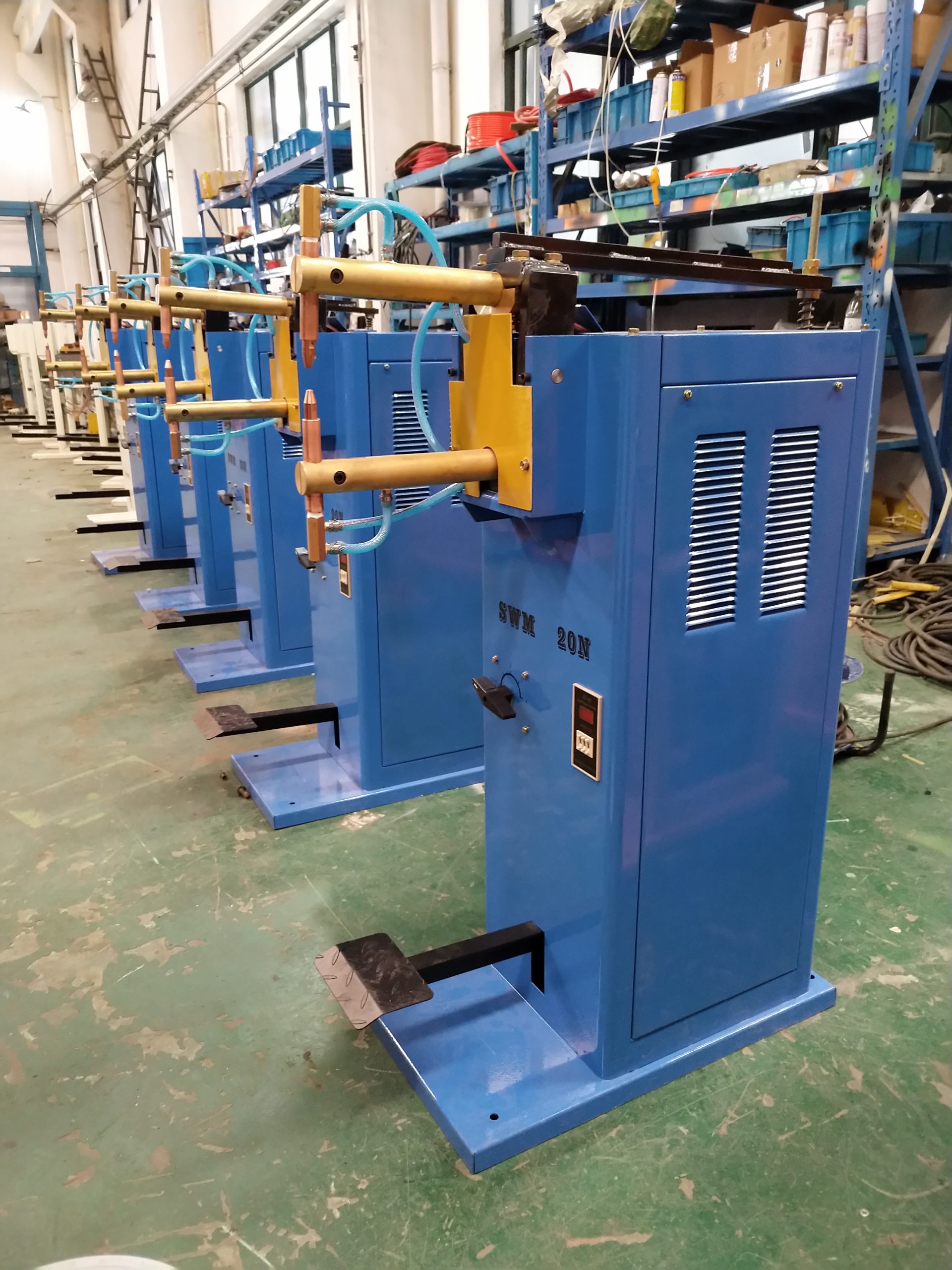

DN-35 pedal spot welder
- Welding time is adjusted and good welding repeatability
- Widely used for welding of low carbon steel;wire stainless steel plate etc
- Low consumption of main transformer power and low no-load current
- Pedal-level type spring-pressing structure makes the machine easy to operate and convenient to maintain;
- Thyristor non一eontaet switch circuit ensure the machine shut off quickly and more reliable;
Description

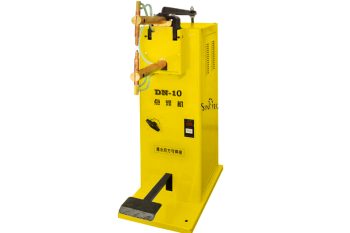

| Model | DN-10 | DN-16 | DN-25 | DN-35 |
| Power Voltage(V) | 380 | 380 | 380 | 380 |
| Frequency(HZ) | 50 | 50 | 50 | 50 |
| Rated Input Capacity(KVA) | 10 | 16 | 25 | 35 |
| Rated Primary Current(A) | 26.3 | 42.1 | 63 | 92 |
| Rated Duty Cycle(%) | 20 | 20 | 20 | 20 |
| No-load Voltage(V) | 1.65-2.4 | 1.98-3.01 | 2.25-3.58 | 3.1-5.2 |
| Welding Thickness(mm) | 1.5+1.5 | 2+2 | 2.5+2.5 | 3+3 |
| Stainless Steel(mm) | 0.8+0.8 | 1+1 | 1.2+1.2 | 1.5+1.5 |
| Adjust Step | 4 | 4 | 4 | 4 |
| Weight(KG) | 72 | 82 | 100 | 105 |
| Dimensions(mm) | 760*340*1080 | 760*340*1080 | 800*340*1140 | 800*340*1140 |
