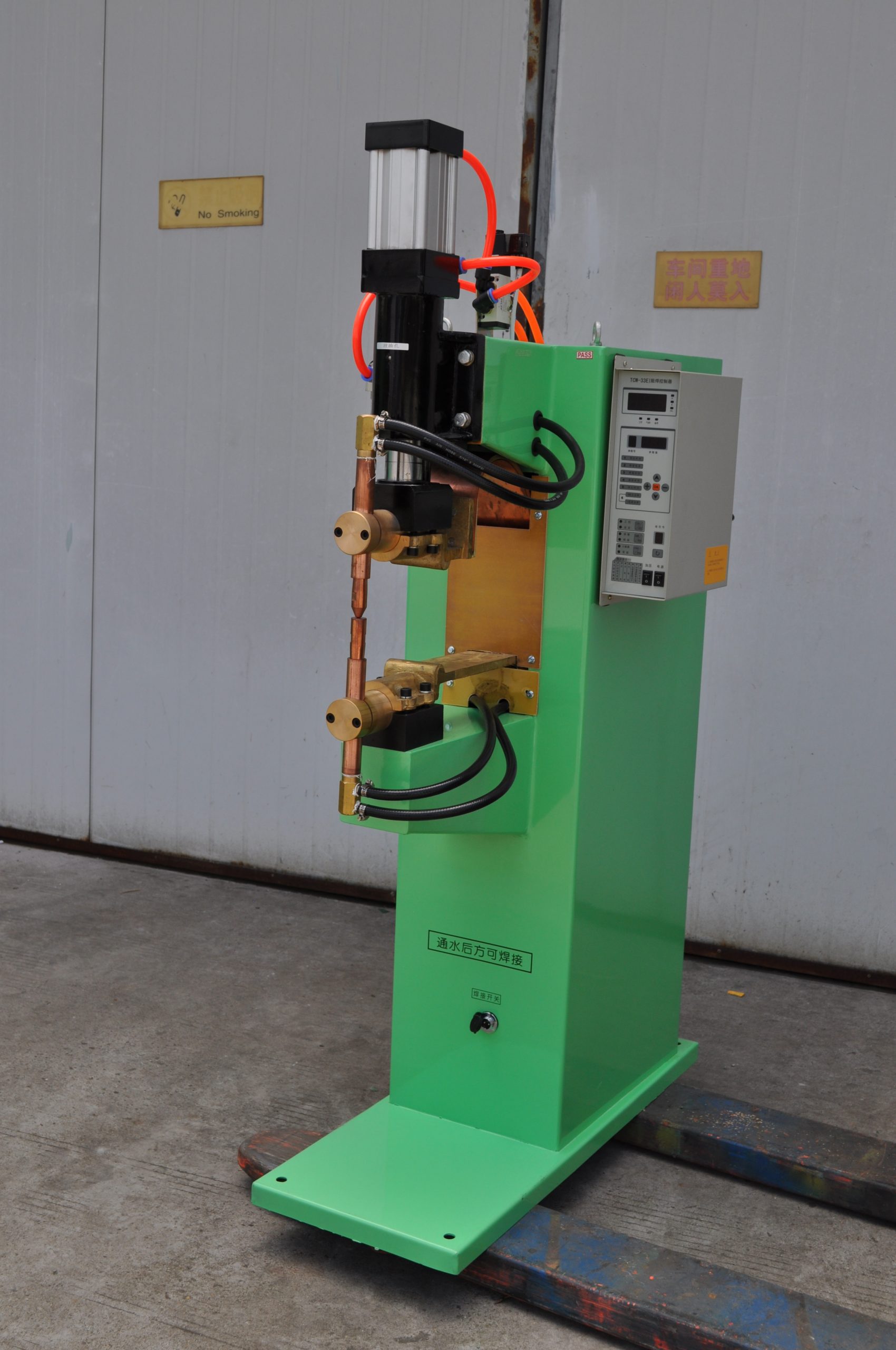

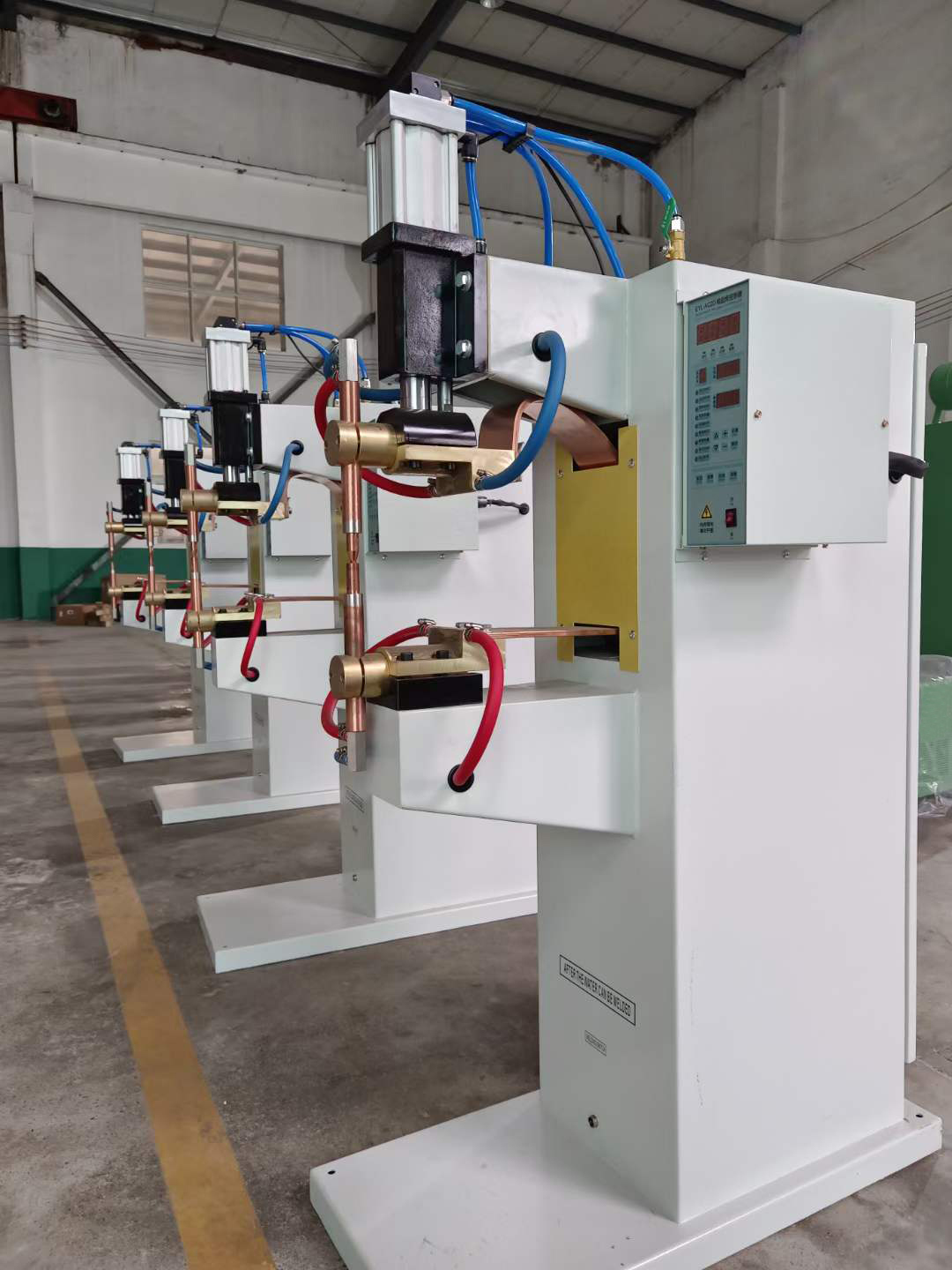

DN-50Q Pneumatic Spot Welder

Widely used in automobile, construction, machinery, metal products, electrical switches and other industries.

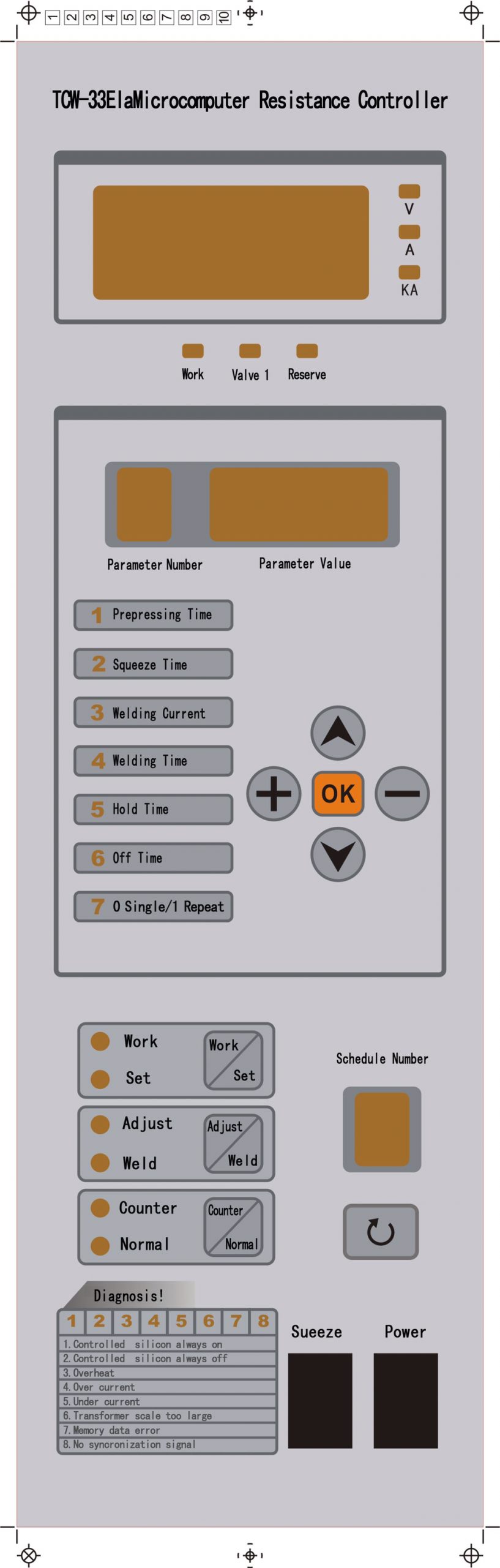

Adopting international famous brand chip and semiconductor element which the program control box ensure the spot working stable, reliable and quality assurance, Moreover single point /continuous spot welding function was provided.

Description

Model		DN-25Q	DN-35Q	DN-50Q	DN-63Q
Primary Voltage(V)		380	380	380	380
Rated Input Capacity(KVA)		25	35	50	63
Rated Input Current(A)		66	92	132	166
Rated Duty Cycle(%)		20	20	20	20
Secondary Voltage Adjust Step		—	—	—	—
Secondary No-load Voltage(V)		0.5-3.52	0.5-4.3	0.5-5	0.5-6.7
Electrode Arm Extension Length(mm)		350	350	350	350
Horn Spacing(mm)		220	220	220	220
Upper Electrode Working Stroke(mm)		25-100	25-100	25-100	25-100
Max.Electrode Force(N)		4000	4000	4000	4000
Electrode Size(mm)	Electrode Arm	Ф55	Ф55	Ф55	Ф55
Electrode Size(mm)	Electrode Holder	Ф25	Ф25	Ф25	Ф25
Welding Thickness(mm)	Low Carbon Steel	2+2	2.5+2.5	3+3	3.5+3.5
Welding Thickness(mm)	Stainless Steel	0.8+0.8	0.9+0.9	1+1	1.2+1.2
Compressed Air Pressure（mpr）		0.6	0.6	0.6	0.6
Consumption Of Compressed Air（M3/h）		12	12	12	12
Flow Of Cooling Water（L/min）		6	6	6	6
Dimensions(mm)		10304001760	10304001760	10304001760	10304001760
Weight（KG）		250	260	280	300
Suggest Input Wire Cross-sectional Area(mm2)		8	16	16	16
