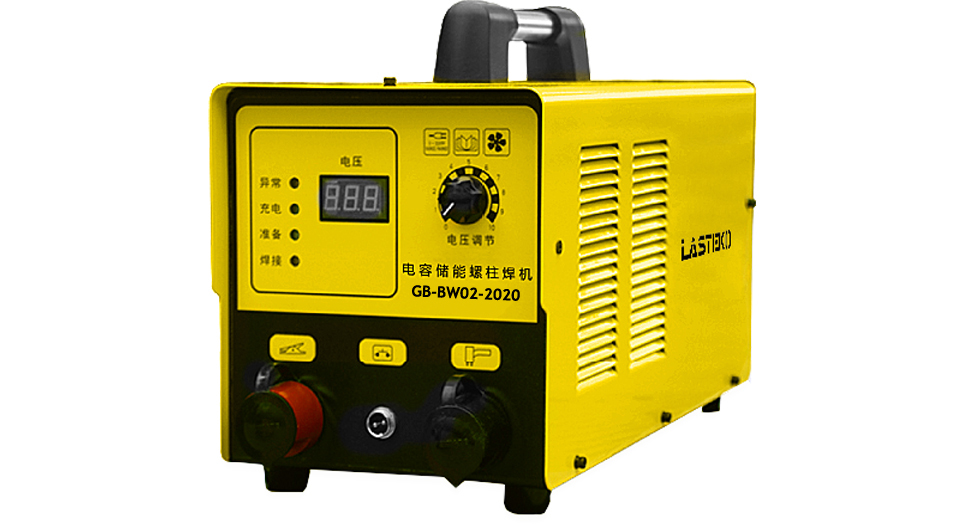

GB-BW02-2020 Insulation Nail Stud Welder

The insulation cotton laying process using insulation nail welding has become a standard thermal insulation installation process in abroad.
The application of this technology has more than ten years of experience, and its excellent stability has been fully affirmed.
In China, some of the iconic building insulation systems also use this process, and some processes in the northern part of the building also use this process and it is not affected by the seasons.

Description

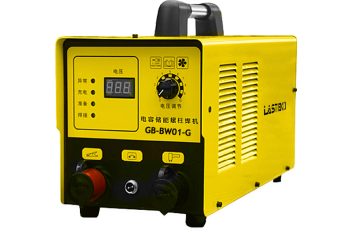

Model	GB-BW02-2020	GB-BW01	GB-BW01-G	GB-25000CY
Welding Current Output Mode	electrolytic capacitor
Capacitor Model(uF)	124000	120000	180000	240000
Power(W)	350	500	650	800
Input Fuse(A)	10-25A
Output Voltage(V)	35-96	35-118	35-168	35-168
Welding scope(mm)	duct insulation nail≤2	duct insulation nail≤2.5	duct/marine insulation nail≤3	duct/marine insulation nail≤4

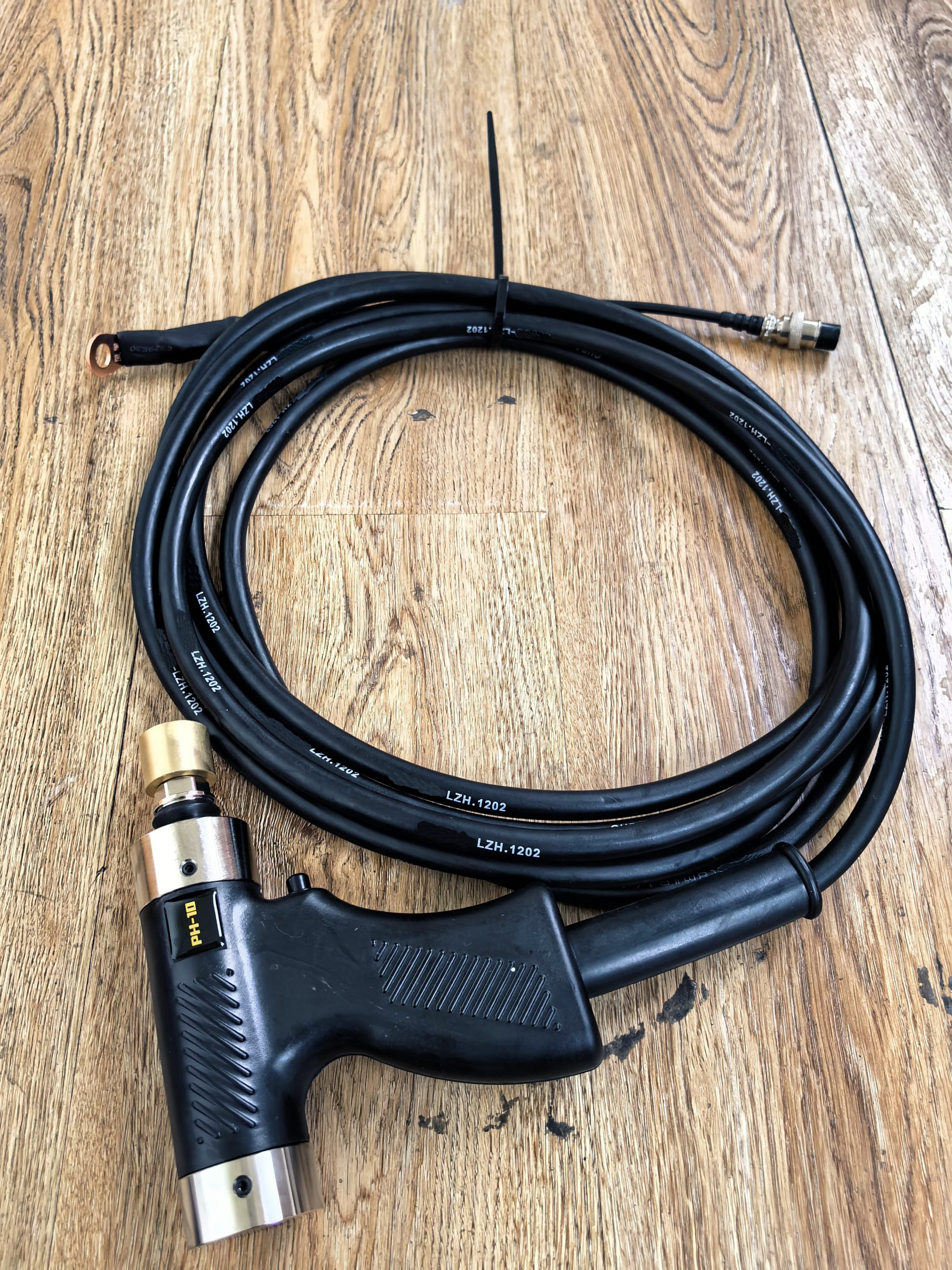

Welding Method	Welding gun type	Welding gun type	Welding gun/Clamp Torch optional
Welding Time(S)	0.001-0.003
Frequency(HZ)	50/60
Welding Speed(pcs/min)	15-40(depends on the output voltage and nut diameter)
Power Voltage(V)	AC220-2P(110/380/415 can customized)
Protection Grade	IP31
Welding Range(mm)	duct insulation nails, marine insulation nails, power plant hook nails, special insulation nails
Torch Cable(m)	3(can customized)
Weight(KG)	10	16	18	22
Dimensions(mm)	365210250	480220300	480220300	600220300
