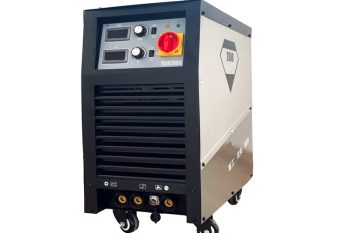

RSN-3200 Drawn Arc Stud Welder
- Inverter soft switching technology, small size, light weight, energy saving and environmental protection, efficient EMI design, low pollution to the power grid. Reasonable output voltage design and torch cable can be extended.
- High load sustainability and high fatigue resistance.
- The function of Arc welding and carbon arc gouging can be customized. Widely used in furnaces, boilers, shipbuilding, power plant construction, chemical construction, machinery and equipment.
- The plate thickness is more than 3MM, and the M4MM-M32MM screws, studs, pins, etc. are welded.
- The welding material is: carbon steel, low alloy steel, copper and other materials with arc weldability. No deformation, no bumps, flat welding, vertical welding, overhead welding, and so on.
Description
| Model | RSN-2000 | RSN-2500 | RSN-3200 |
| Voltage(V) | AC 380.3φ±10% | AC 380.3φ±10% | AC 380.3φ±10% |
| Rated Input Capacity(KVA) | 69 | 94 | 126 |
| Welding Current(A) | 2000 | 2500 | 3200 |
| Welding Current Adjustment Range(A) | 200-2000 | 250-2500 | 300-3200 |
| Welding Range(ø mm) | 6-19 | 6-25 | 6-30 |
| Welding Time(ms) | 0.01-9.99 | 0.01-9.99 | 0.01-9.99 |
| Welding Speed(pcs/min) | 10-20 | 10-20 | 10-20 |
| Multi-purpose machine | manual welding(optional), automatic welding, manual lifting gun welding(The function of Arc welding and carbon arc gouging can be customized) | ||
| Protection Grade | IP21S | IP21S | IP21S |
| Cooling Method | Air cooling | ||
| Efficiency | ≧0.85 | ||
| Power factor | ≧0.9 | ||
| Weight(KG) | 65 | 105 | 110 |
| Dimensions(mm) | 680*335*625 | 780*390*800 | 780*390*800 |
