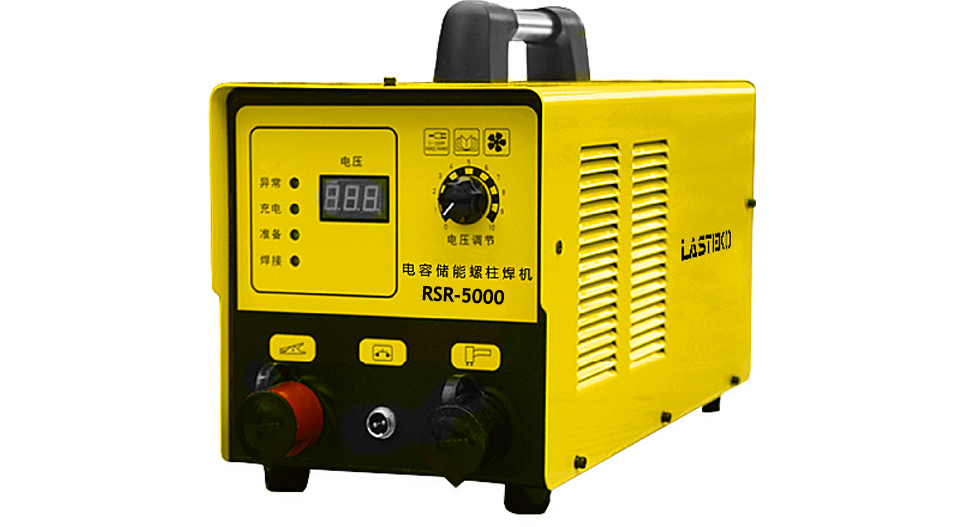

RSR-5000 Capacitor Discharge Stud Welding Machine

Working voltage detection is more accurate under the control of microcontroller, discharge of the capacitor more fully, welding superior performance, more conductive performance protection
Suitable for welding carbon steel, stainless steel, steel alloy, aluminum and other materials; welding time as only 6 milliseconds to ensure that the same material of the solderability

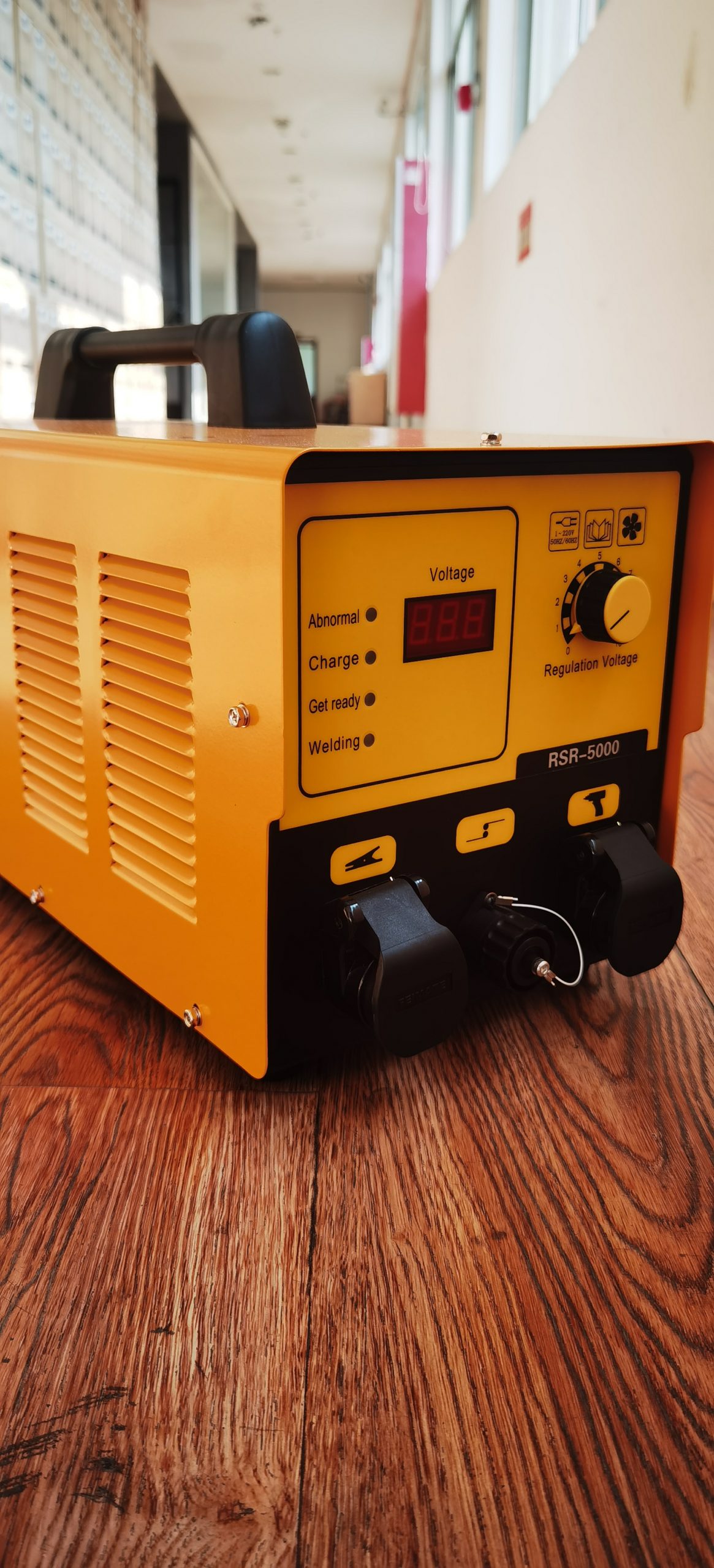

The display shows the operating voltage, can be adjusted without stepless, as well it is designed for board-mounted digital tube, long life, easy maintenance, no external display header
Failure rate is very low, it is average can be use more than a million times without any trouble
Adopting single-chip control, parameter control precision, the key components are imported
Weld guns use Germany imported micro-control switch that life expectancy can reach 600,000 times,the main capacitor life reach 2 million times

Description

Model	RSR-1600	RSR-2500	RSR-3500(Galvanized sheet)	RSR-5000
Welding Current Output Mode	electrolytic capacitor
Charging Capacitor Capacity(uF)	72000	108000	144000	144000
Input Power(W)	500	500	800	1000
Input Fuse(A)	10
Charging Voltage(V)	35-200 DC
Welding Time(S)	0.001-0.003
Welding Speed(pcs/min)	Maximum 40 pcs/min (welding quantity depends on output voltage and bolt diameter)
Power Voltage(V)	AC220-2P(110/380/415 can customized)
Frequency(HZ)	50/60
Protection Grade	IP31
Welding Stud Length(mm)	standard 5-35
Torch Cable(m)	3(can customized)
Stud Welding Range(stud diameter mm/material)	2-6/low-carbon steel	2-8/low-carbon steel	2-10/low-carbon steel	2-10/low-carbon steel
	2-6/stainless steel	2-8/stainless steel	2-8/stainless steel	2-10/stainless steel
	2-6/aluminum alloy	2-8/aluminum alloy	2-8/aluminum alloy	2-8/aluminum alloy
	2-6/zinc	2-8/zinc	2-8/zinc	2-10/zinc
Weight(KG)	16	18	22	28
Dimensions(mm)	480220300	480220300	600220300	600220300
