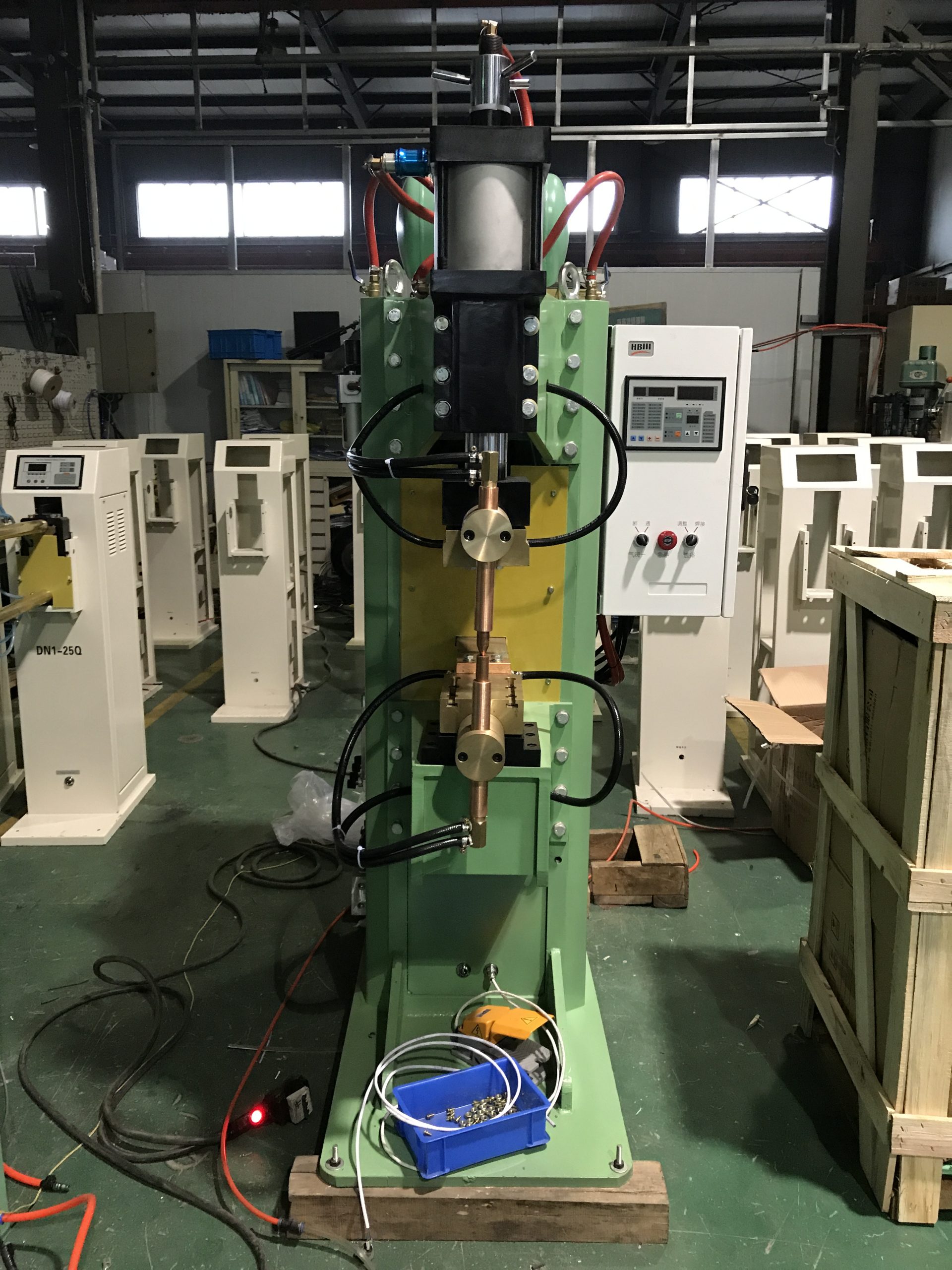

DTM-40K Inverter Middle Frequent Spot Welder

Welding at high stability.
Saving power more than 30% at low operating costs.
Three-phase power supply with power factor up to 95%.
Low welding current and electrode pressure.
Secondary circuit almost no energy loss induced.
Over one time electrode life improved.
Short welding time, improving working efficiency and welding quality.
Welding a wider range of low-carbon steel, stainless steel, copper, aluminum, galvanized sheet etc.

Contact us immediately

Category: Middle Frequent Spot Welder

Description
Reviews (0)

Description

Model		DTM-20K	DTM-40K	DTM-60K	DTM-80K
Rated Input Capacity(KVA)		80	160	240	350
Maximum Short Circuit Current(KA)		20	40	60	80
Primary Voltage(V)		380 3ph	380 3ph	380 3ph	380 3ph
Rated Duty Cycle(%)		50	50	50	50
Secondary Adjusting Step		—	—	—	—
Electrode Pressure(N)		12000	12000	18000	18000
Electrode Arm Extension Length(mm)		450	450	450	450
Horn Spacing(mm)		310	310	310	310
Electrode Working Stroke(mm)		80	80	80	80
Electrode Size(mm)	Electrode Arm	Φ80	Φ80	Φ80	Φ80
	Electrode Holder	Φ30	Φ30	Φ30	Φ30
	Convex pad	140*160	140*160	180*200	180*200
Welding Thickness(mm)	Low Carbon Steel	4+4	5+5	6+6	7+7
	Stainless Steel	2+2	2.5+2.5	3+3	3.5+3.5
	Aluminum	1+1	1.5+1.5	2+2	2.5+2.5
Nut Welding Internal Diameter(mm)		M3-M6	M3-M8	M3-M12	M3-M14
Flow Of Cooling Water(L/min)		12	12	12	12
Dimensions(mm)		12008802050	12008802050	12008802050	12008802050
