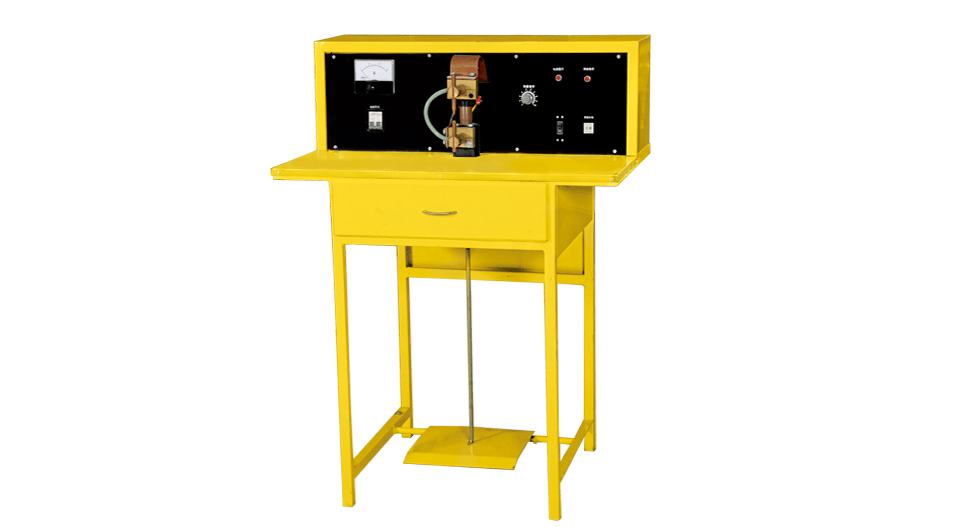

Electronic Pulse Welder

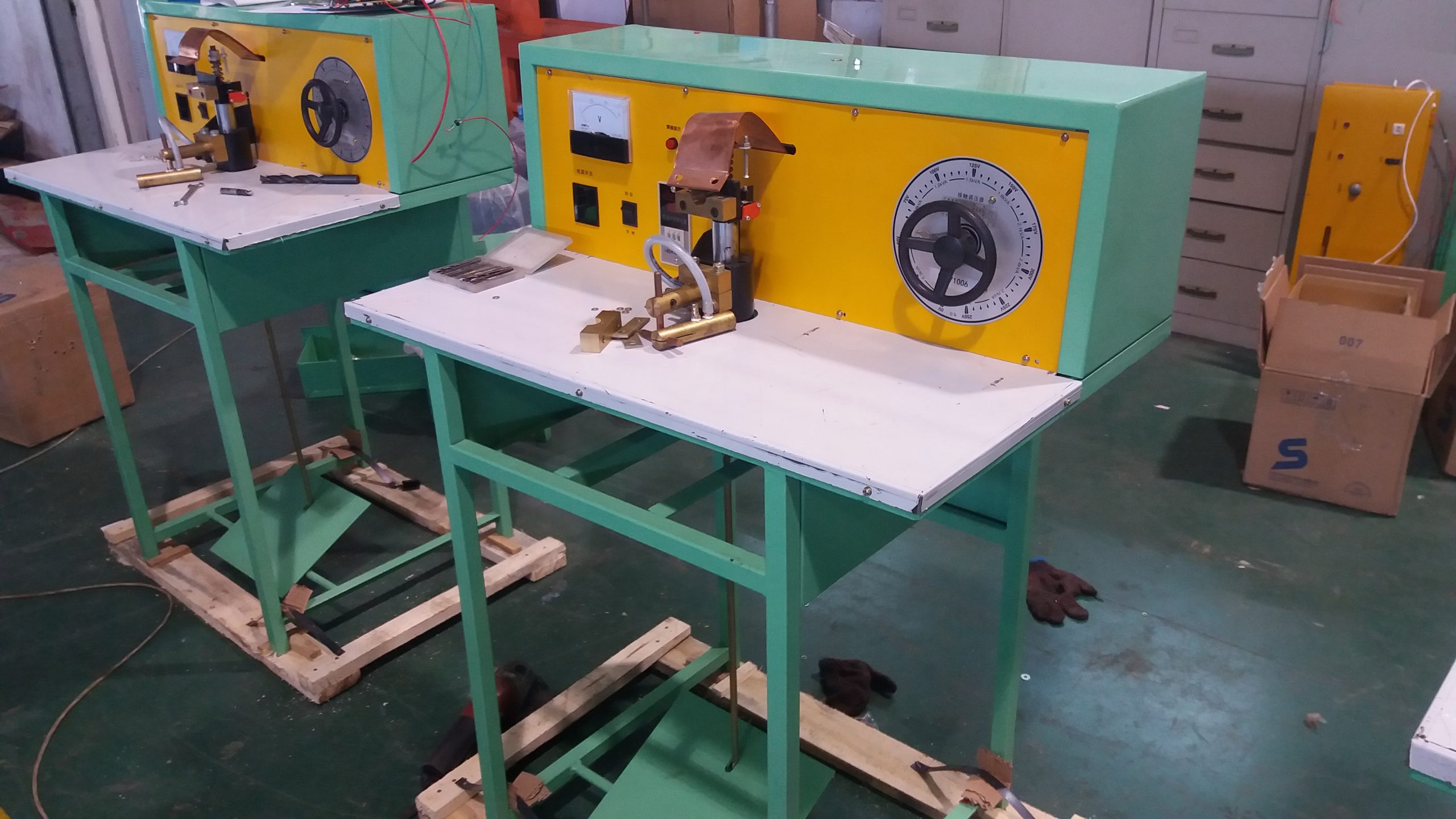

JDM Series Electronic Pulse Spot Welder - Image 2

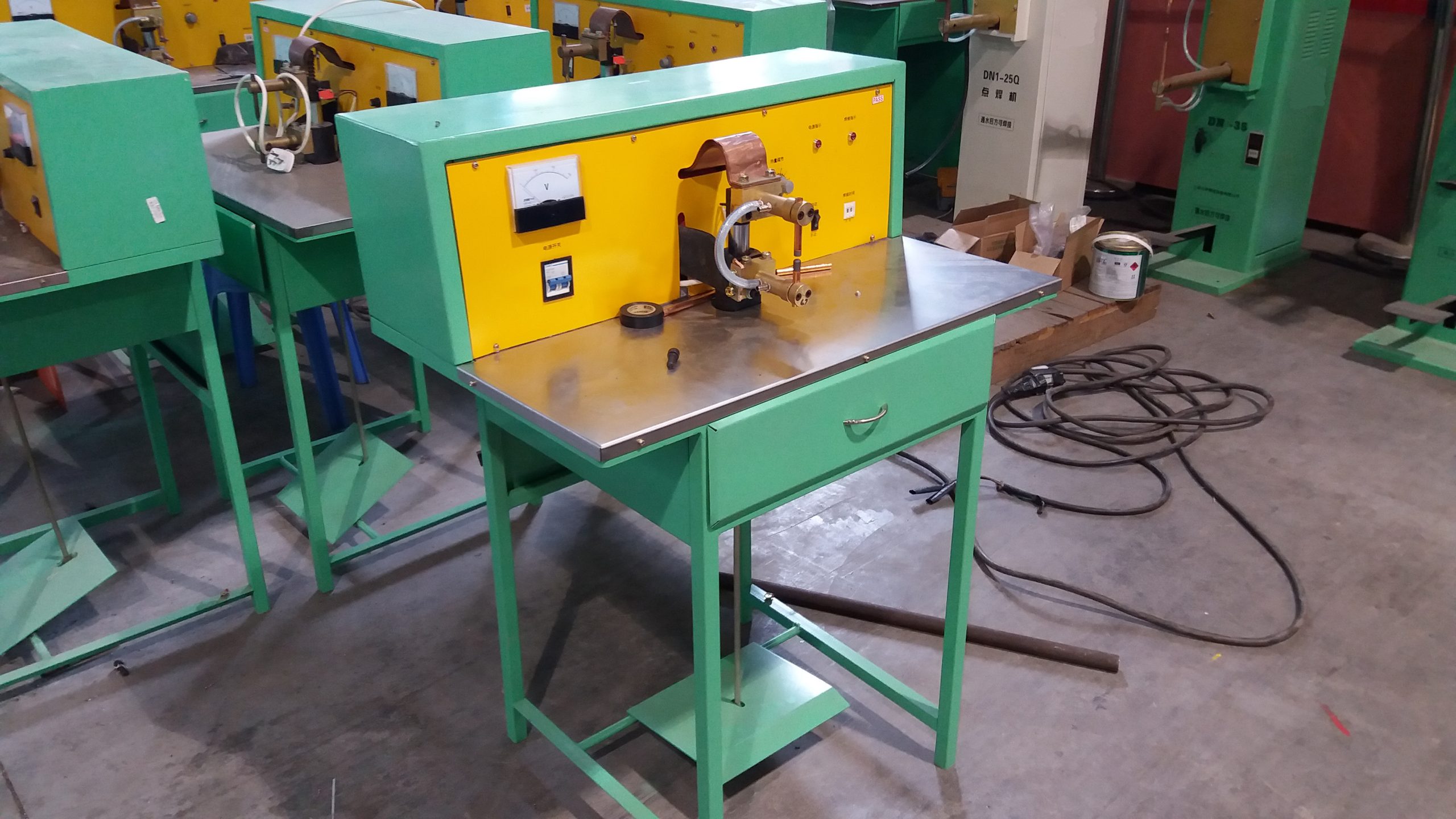

JDM Series Electronic Pulse Spot Welder - Image 3

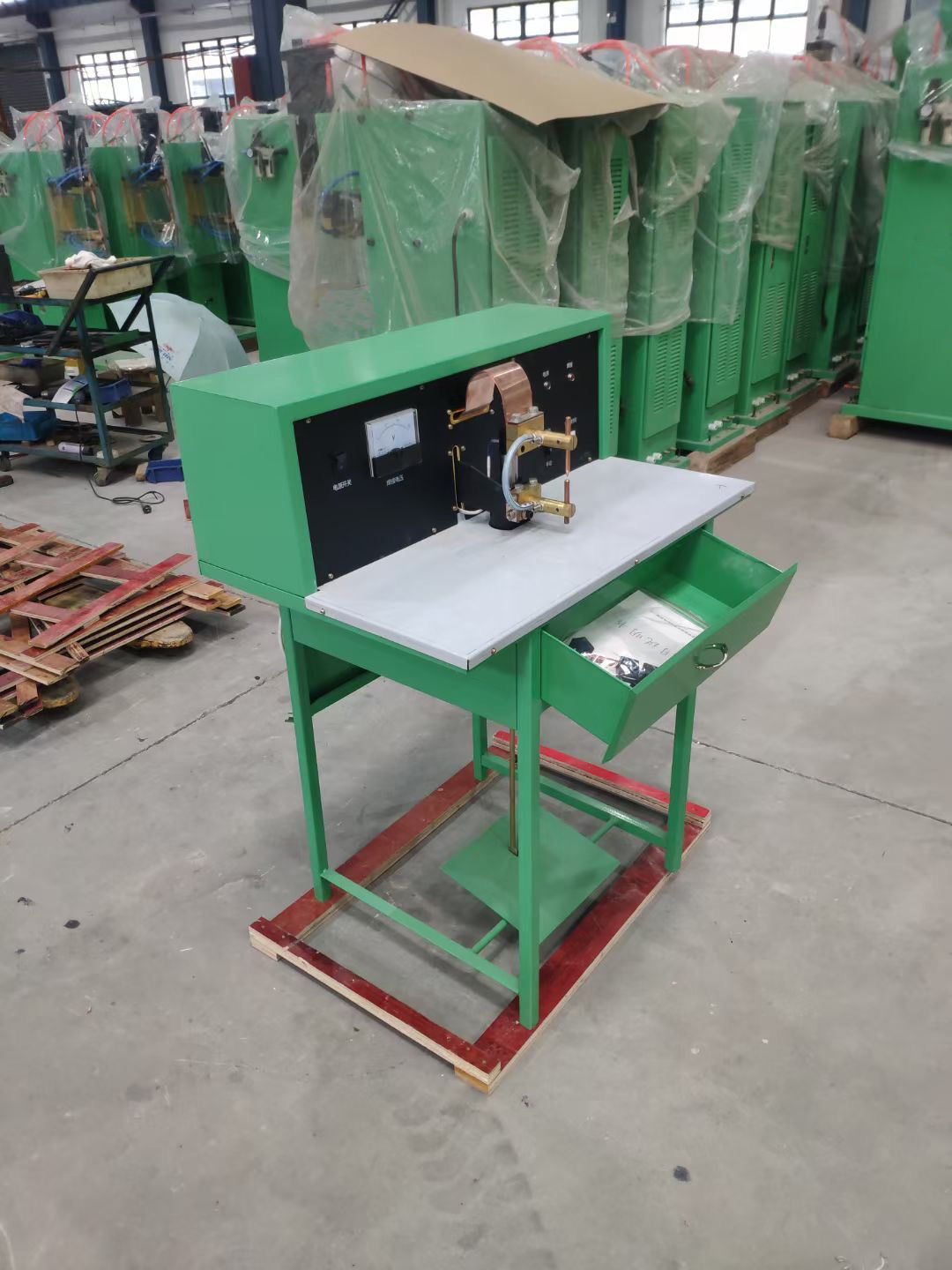

JDM Series Electronic Pulse Spot Welder - Image 4

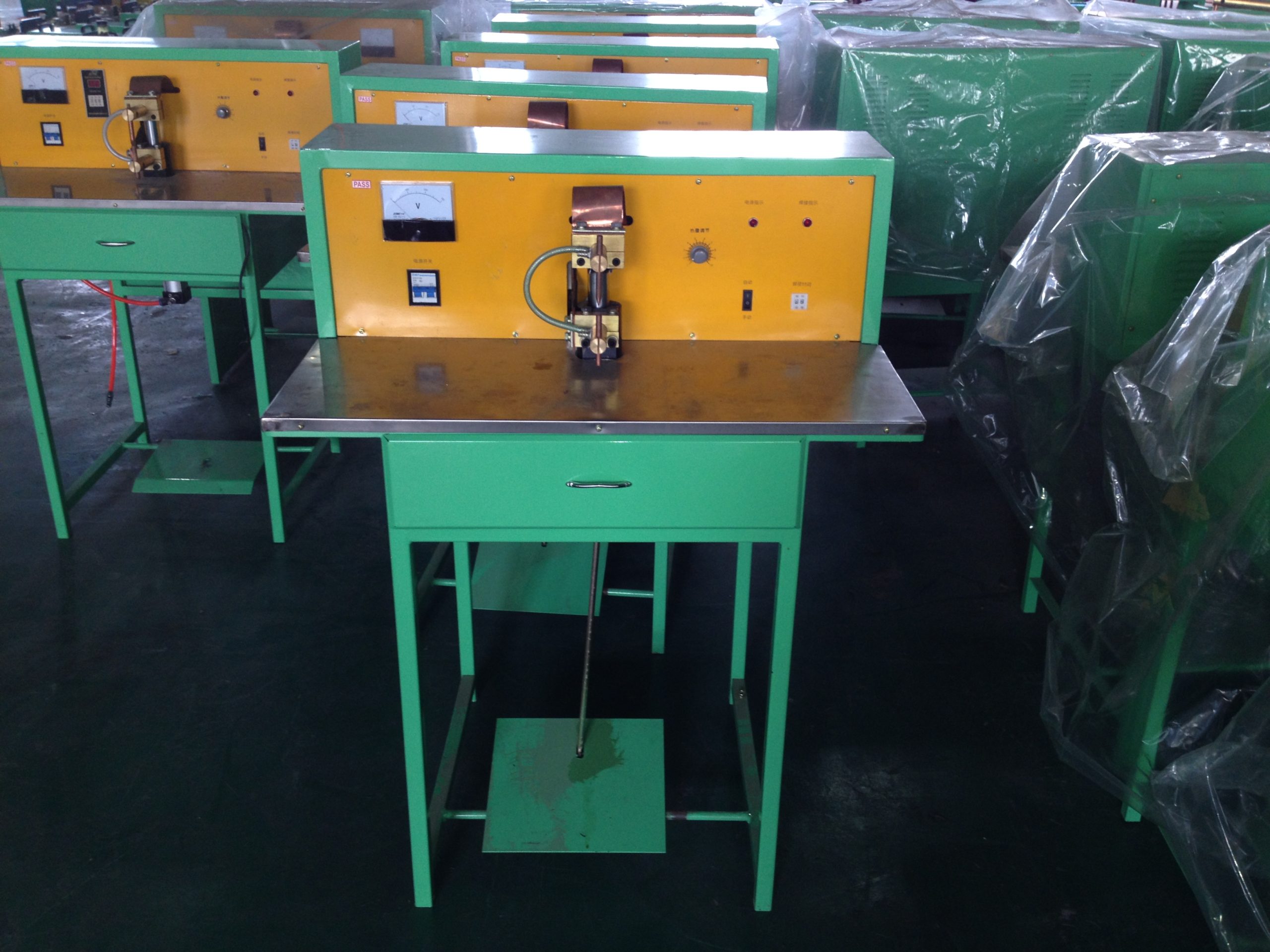

JDM Series Electronic Pulse Spot Welder - Image 5

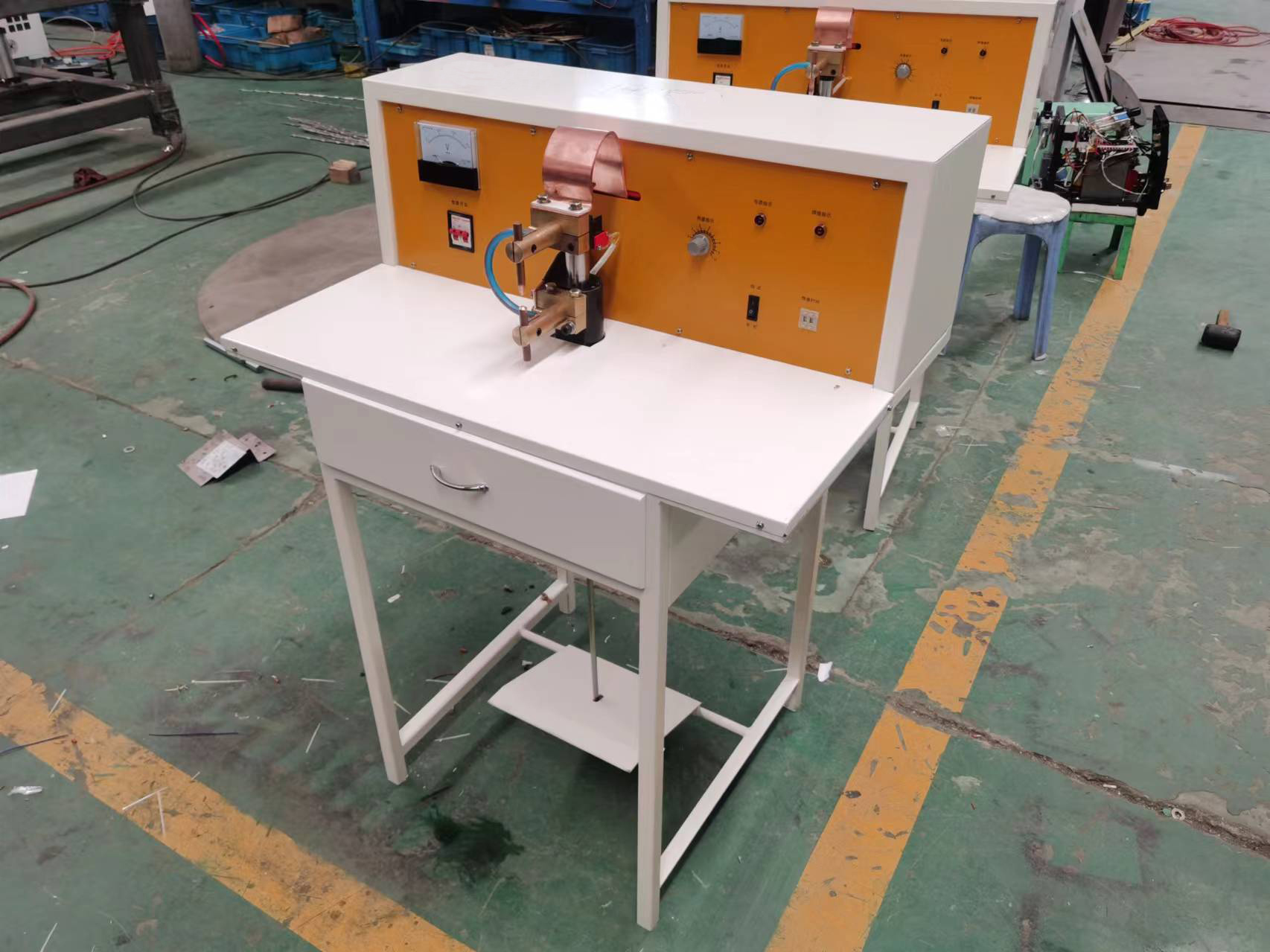

JDM Series Electronic Pulse Spot Welder - Image 6

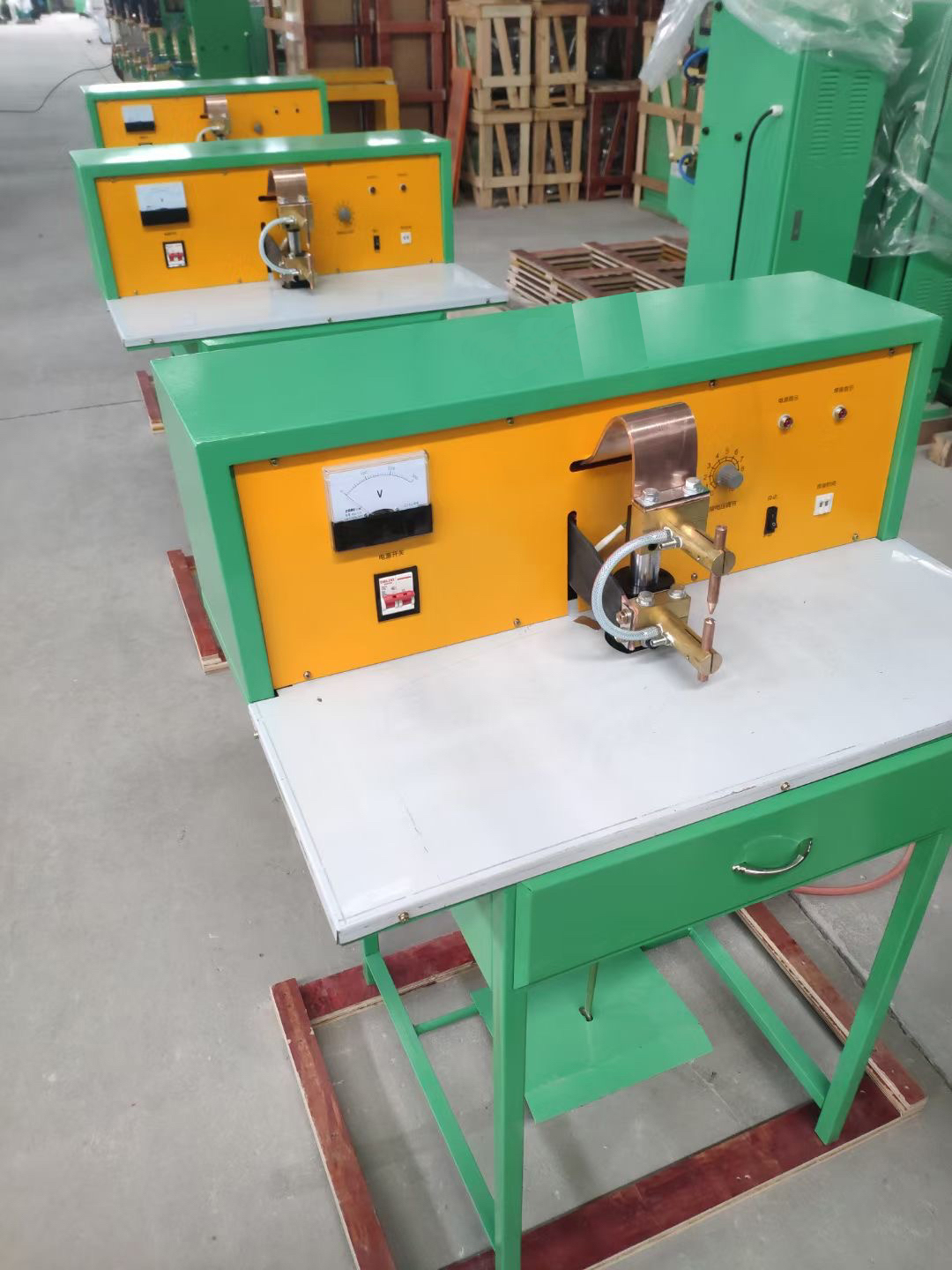

JDM Series Electronic Pulse Spot Welder - Image 7
JDM Series Electronic Pulse Spot Welder - Image 8

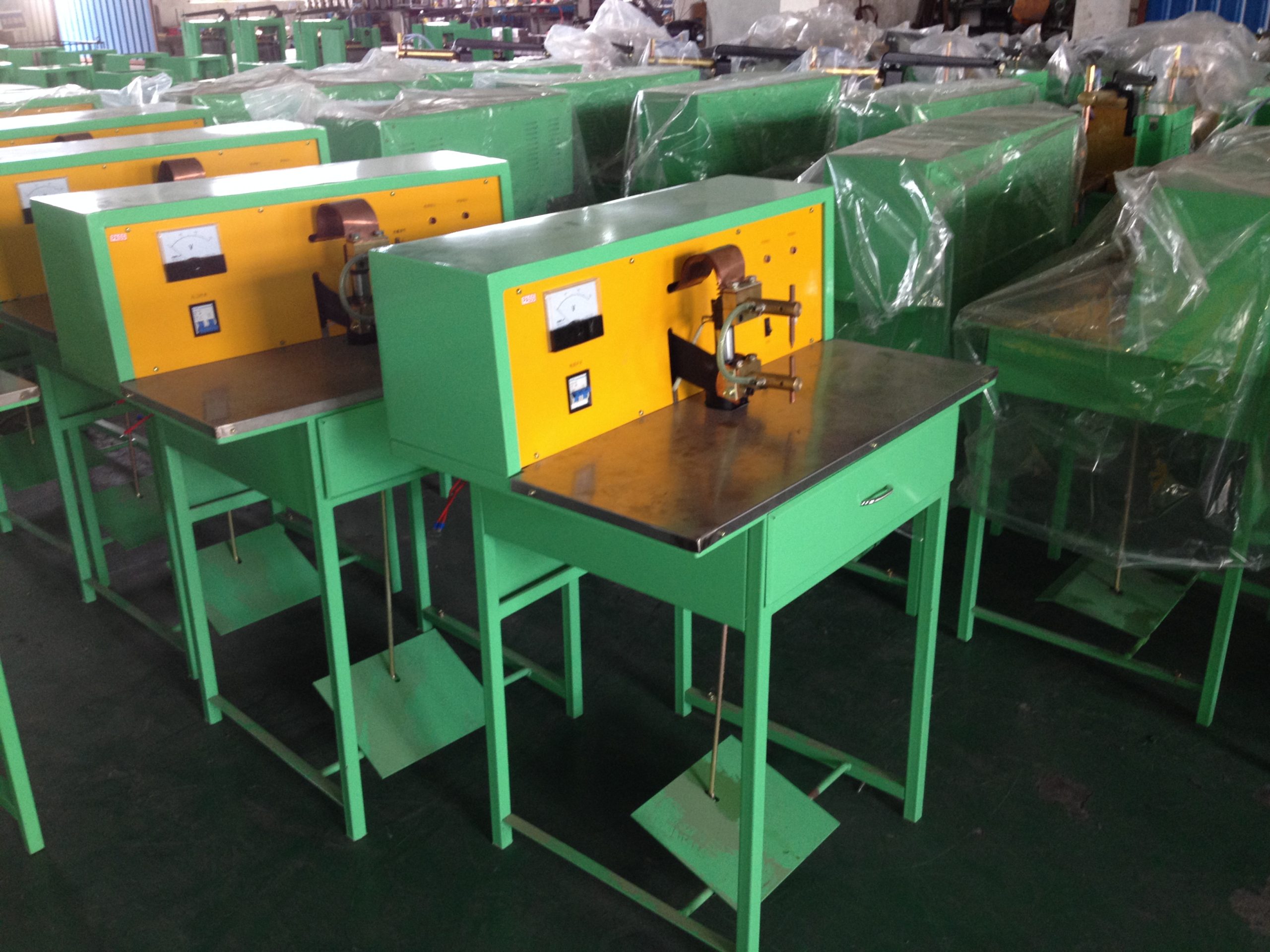

JDM Series Electronic Pulse Spot Welder

  • JDM spot welder adopts advanced integrated block.
  • The main circuit and heat exquisite controlled by silicon.
  • Widely used in electrical appliance switch, instrument & meter, metal products and so on,offering high quality strong welding or soldering for low carbon steel, stainless steel and non-ferrous metal.
Contact us immediately
Category:

Description

Model JDM-3 JDM-5 JDM-10 JDM-16 JDM-25
Rated Input Capacity(KVA) 3 5 10 16 25
Primary Voltage(V) 220 220 380 380 380
Rated Duty Cycle(%) 20 20 20 20 20
Arm Length(mm) 100 100 100 100 100
Upper, Lower Electrode Arm Spacing(mm) 80 80 80 80 80
Upper Electrode Working Stroke(mm) 15 20 20 20 20
Maximum Pressure(N) 400 400 400 400 400
Flow of Cooling Water(L/min) 1 1 2 2 2
Welding Thickness(low carbon steel)(mm) 0.5+0.5 1+1 1.5+1.5 2+2 2.5+2.5
Stainless Steel(mm) 0.3+0.3 0.5+0.5 0.8+0.8 0.8+0.8 1.2+1.2
Dimensions(mm) 530*810*1050 530*810*1050 530*810*1050 530*810*1050 530*810*1050
Weight（KG） 56 58 68 78 85
