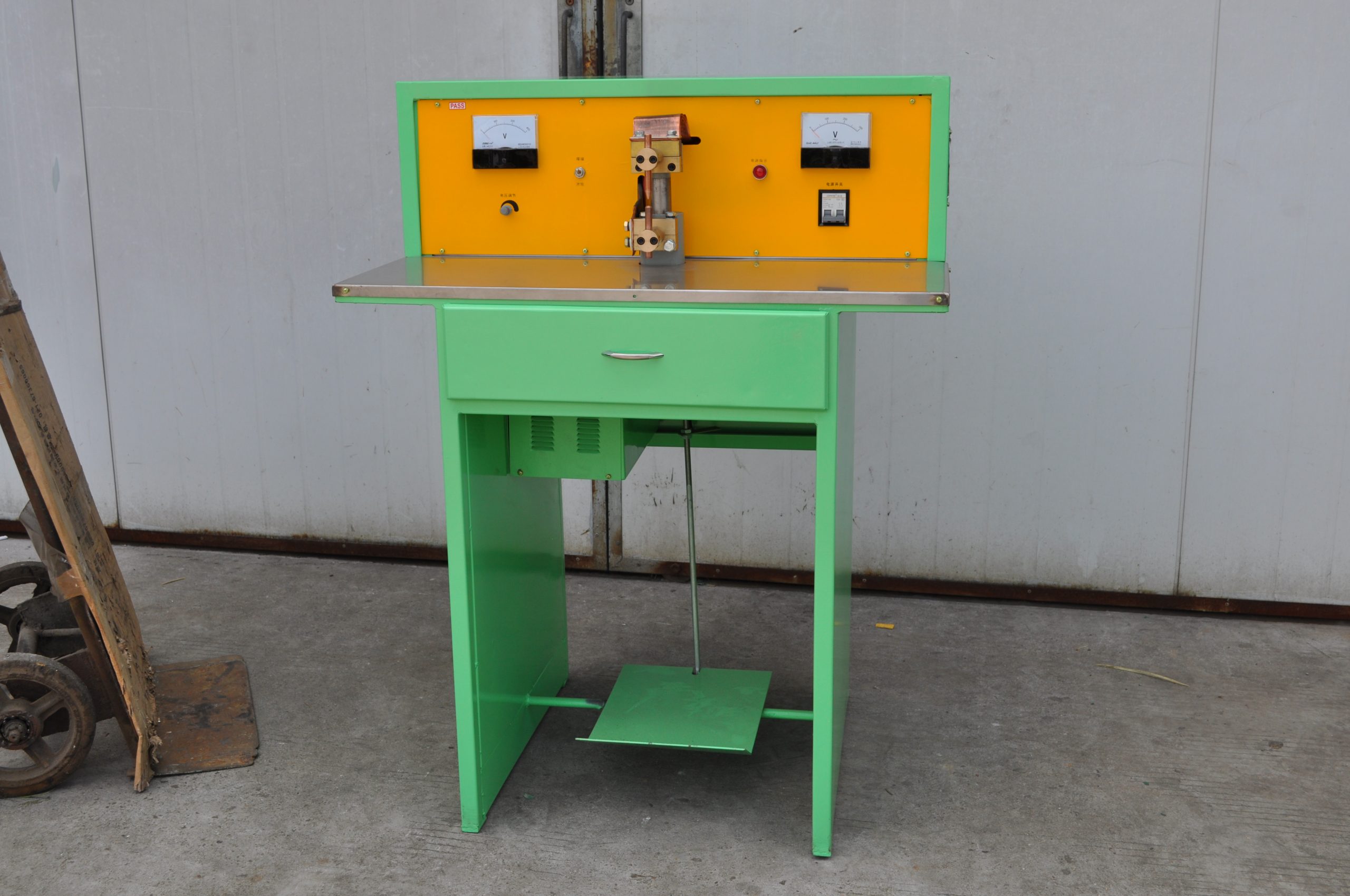

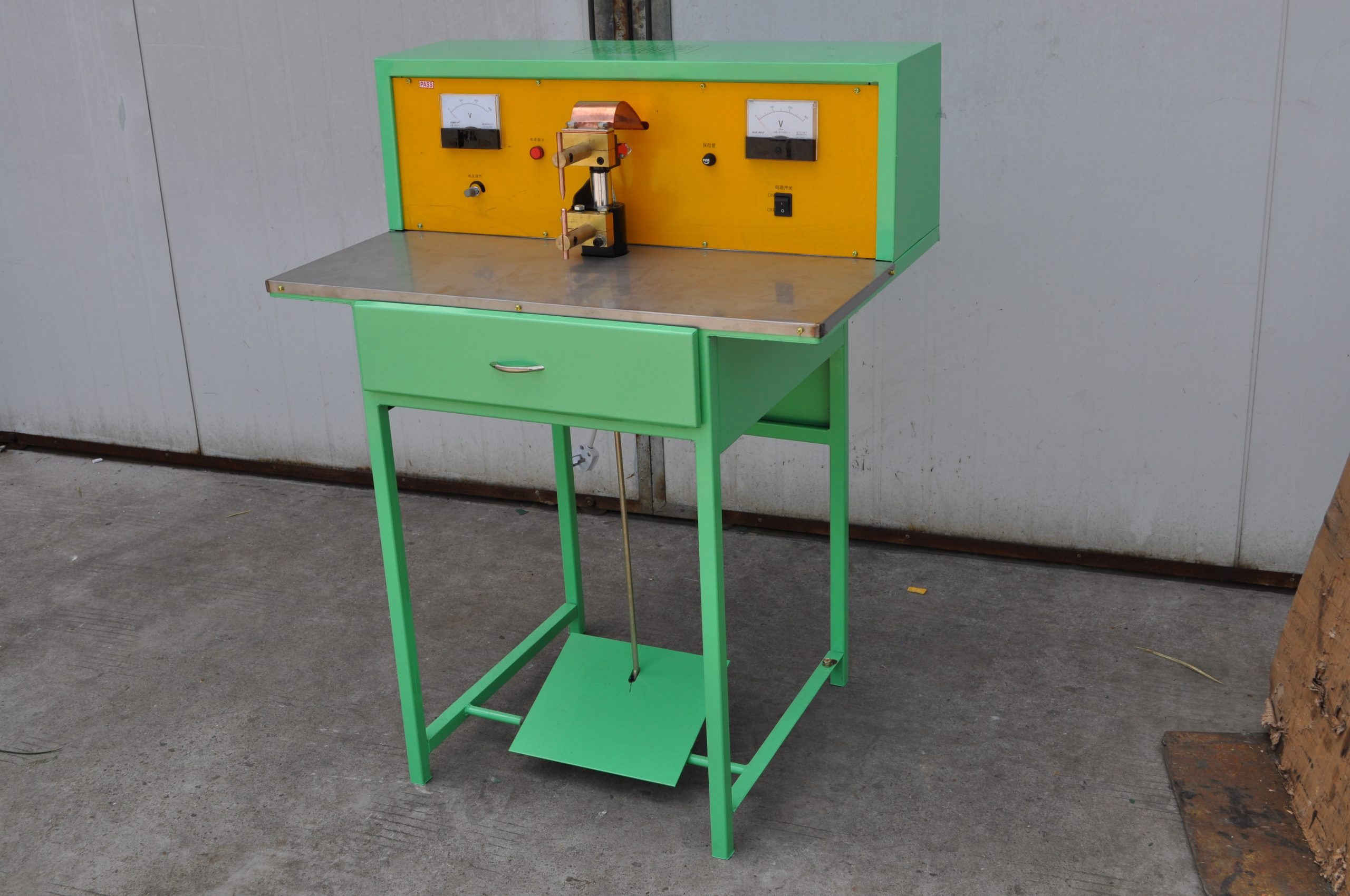

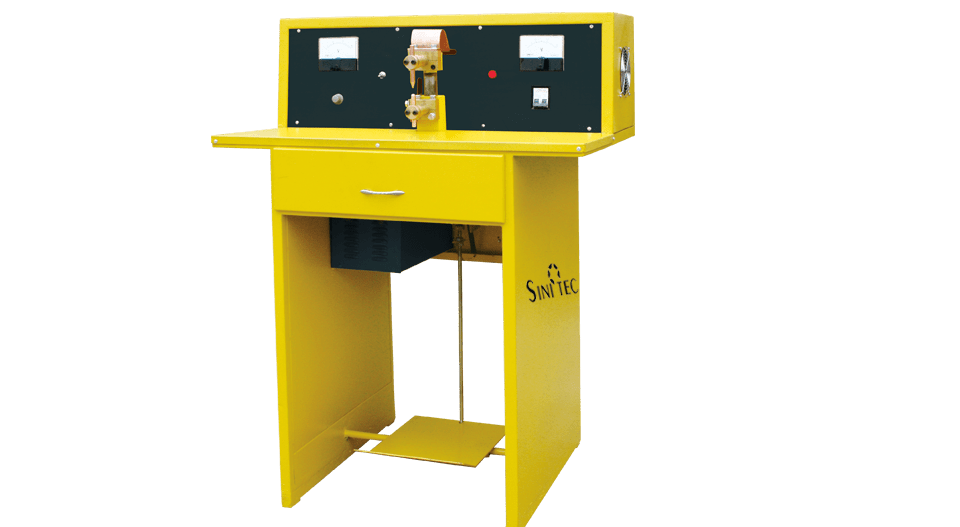

DR Series Energy Storage Spot Welder
- Good performance at welding electrical applicance switches, relays, instrument & meter, metal products, stainless steel and non-ferrous metal.
- Powered by energy storage source.
- The workpiece without deformation after welding.
Description
| Model | DR-200 | DR-500 | DR-1000 |
| Power Voltage(V) | 220 | 220 | 220 |
| Frequency(HZ) | 50 | 50 | 50 |
| Rated Output Capacity(KVA) | 1 | 2 | 3 |
| Output Energy (J) | 200 | 500 | 500 |
| Capacitance(uF) | 2000 | 9600 | 19200 |
| Welding Thickness (mm) | 0.4+0.4 | 1+1 | 1.5+1.5 |
| Stainless Steel (mm) | 0.2+0.2 | 0.5+0.5 | 0.8+0.8 |
| Weight（KG） | 50 | 120 | 180 |
