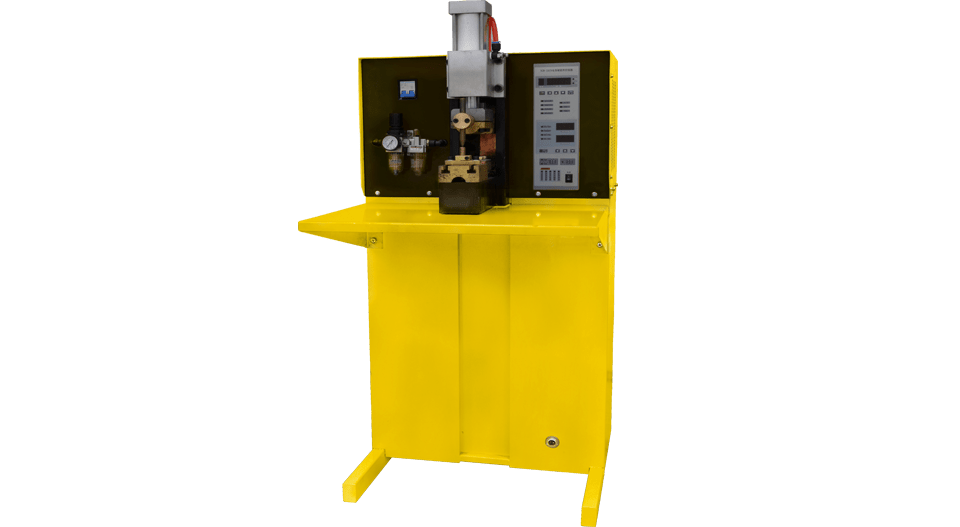

Pneumatic Capacitor Energy Storage Welder
DRQ Series Pneumatic Capacitor Energy Storage Spot Welder - Image 2
DRQ Series Pneumatic Capacitor Energy Storage Spot Welder - Image 3
DRQ Series Pneumatic Capacitor Energy Storage Spot Welder - Image 4
DRQ Series Pneumatic Capacitor Energy Storage Spot Welder - Image 5

DRQ Series Pneumatic Capacitor Energy Storage Spot Welder

  • Geting grid energy with small power and store in a capacitor.Welding workingpiece in a short time by resistance transformer.
  • It mainly used for welding stainless steel, aluminum, copper and many non-ferrous metals.
Contact us immediately
Category:

Description

Model DRQ-1000 DRQ-2000 DRQ-3000 DRQ–5000 DRQ-10000 DRQ-30000 DRQ-60000
Power Voltage/Frequency(V/HZ) 220/50 220/50 380/50 380/50 380/50 380/50 380/50
Rated Input Capacity(KVA) 3 4 5 8 18 48 60
Output Capacity(J) 1000 2000 3000 5000 10000 30000 60000
Capacitance(uF) 22000 44000 66000 110000 220000 660000 1320000
Charging Voltage(V) 90-320 90-320 90-320 90-320 90-320 90-320 90-320
Electrode Pressure(N) 3000 3000 4000 6800 9000 9000 9000
Gas Resistance Pressure(N) 0.55 0.55 0.55 0.55 0.55 0.55 0.55
Welding Thickness(mm) 1+1 1.5+1.5 2+2 2.5+2.5 3+3 3.5+3.5 4+4
Stainless Steel(mm) 0.5+0.5 0.8+0.8 1+1 1.2+1.2 2+2 3+3 4+4
Compressed Air Pressure(Mpr) 60 60 75 100 100 100 100
